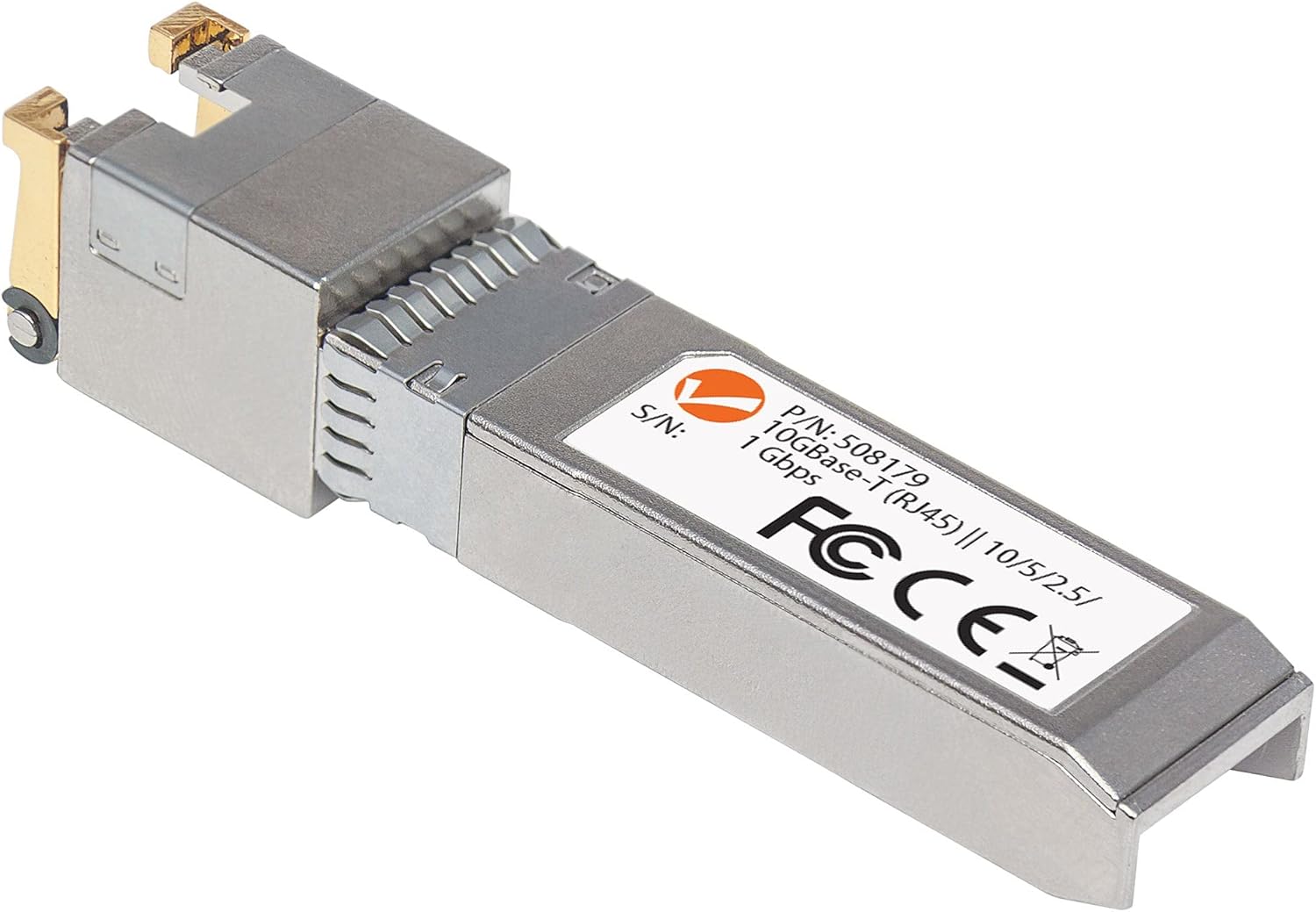

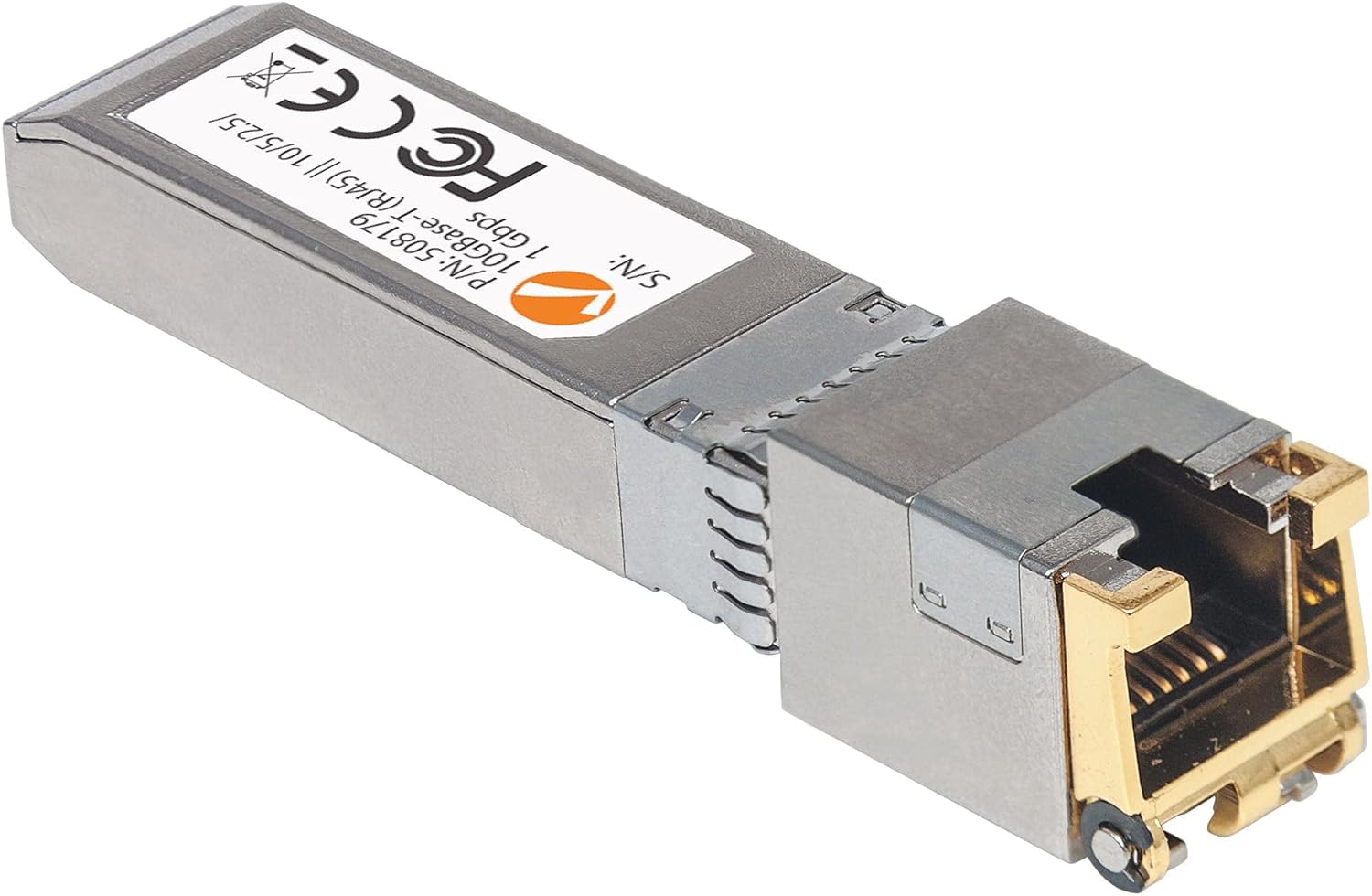

Intellinet 10G Copper SFP+ Transceiver Module, RJ45 10GbE for Cat6a/Cat6/Cat5e, NBASE-T 2.5/5/10G, MSA Compatible, Hot-Pluggable, 30m Max - 508179

10 Gigabit Copper SFP+ Transceiver Module The new line of Intellinet Network Solutions Enhanced Small Form Factor Pluggable (SFP+) Transceivers provides customers with a combination of high-performance and affordability. The metal housing of these transceiver modules reduces electromagnetic interference and increases their durability. 10 Gigabit Ethernet connections via Copper RJ45 Cabling The Intellinet Network Solutions 10 Gigabit Copper SFP+ Transceiver Module provides an impressive data transfer speed of up to 10 Gigabits per second when using Cat6a (augmented Cat6 cabling with improved specifications). This SFP+ copper transceiver is an extremely versatile and ultra-high performing connection point for your server or workstation. State-of-the-Art NBASE-T Technology With full support of the IEEE 802. 3bz standard, the Intellinet Network Solutions 10 Gigabit Copper SFP+ Transceiver Module supports Gigabit speeds using Cat6 and Cat5e network cabling. The former transfers and receives data at up to 5 Gbps whereas the latter still manages an impressive 2. 5 Gbps. Compatibility Compatibility in your network is essential. The Intellinet Network Solutions SFP+ Transceiver Module can be used with any Intellinet Network Solutions SFP+ equipped network switch or any other MSA-compliant (multi-source agreement) SFP+ enabled switch. And since the Intellinet Network Solutions SFP+ transceiver module is set to broadcast the part number MA-SFP-10G-T, compatibility to your Cisco gear is provided. Hot-Pluggable The Intellinet Network Solutions 10 Gigabit Copper SFP+ Optical Transceiver Module is fully hot-pluggable, allowing you to install the module without rebooting your network switch for uninterrupted network traffic.

• 10GBASE‑T over RJ45 via SFP+ slot – Adds a copper Ethernet RJ45 port to a switch or media converter with an SFP+ transceiver bay; uses standard twisted‑pair cabling instead of fiber.
• Multi‑rate support by cable type – Up to 10 Gbps with Cat6a, up to 5 Gbps with Cat6, and up to 2.5 Gbps with Cat5e; supports 1000Base‑T as well for backward compatibility.
• Defined reach limits for copper links – 30 m at 10 Gbps (Cat6a), 50 m at 5/2.5 Gbps (Cat6/Cat5e), and up to 100 m at 100 Mbps (Cat5e), helping set expectations for short‑run deployments.
• MSA‑compliant SFP+ form factor – Built to the SFP Multi‑Source Agreement for broad interoperability with MSA‑compliant SFP+ ports; hot‑pluggable for swaps without powering down the host device.
• Practical hardware details – Auto MDI/MDI‑X on the RJ45 port; fully metallic housing to reduce EMI; 3.3 V operation with up to 3.0 W power draw; FCC Class A, CE, RoHS, and NDAA compliance.
